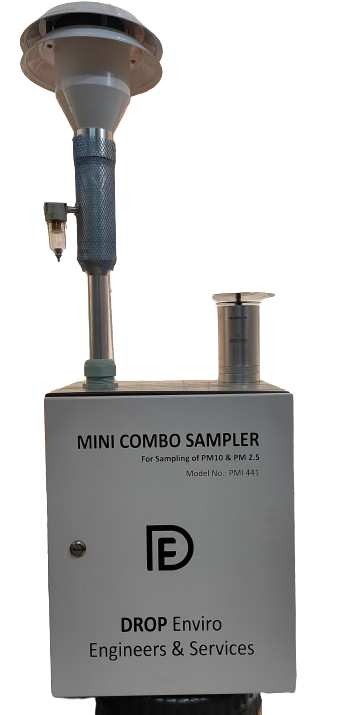

Mini Combo sampler

MINI COMBO SAMPLER

Flow Rate PM10 : 38 LPM (Constant Flow Maintained with the Needle valve Arylic flow meter )

Flow Rate PM2.5 : 16.7 LPM (Constant Constant Flow Maintained with the Needle valve Arylic flow meter)

Particle Size : Particles of 10 microns and below collected on standard glass micro fiber filter paper of 47mm diameter fitted below single stage impactor. While particles of 2.5 microns are collected in a separate 46.2 mm diameter PTFE membrane filter fitted at the bottom of WINS impactor of two stage impactor.

PM10 Impactor : Single stage matching to European Design (according to EN12341)

PM2.5 Impactor : Two stage as per USEPA Published Designs(Federal Register 40 CFR part 50)

Automatic Sampling : A digital timer is provided to automate the operation of sampler

Time : 0 to 9999.99 hrs recorded on a Digital Time Totalizer

Power Requirement: Nominal 220V, Single Phase, 50Hz AC mains supply.

Cabinet : Single modular, corrosion free, lockable & easy to transport

Size & Weight (approx) : L X B X H : 480 mm x 410 mm x 300 mm, 25 kg

OVERVIEW:-

We come with a highly advanced Mini Combo Sampler that is known for its sturdy and improved cabinet design. These Mini Combo Sampler have profound uses in analysis of particulates level in the air, owing to their high efficiency and combined functionality of sampling variable particle sizes. The design and fabrication of these products are accomplished by diligent expertise with the effective utilization of savant-grade technology.

SPECIAL-FEATURES

Customized Rotameter specially made for PM2.5 having 16.7 LPM & 38 LPM for PM10 flow indicating mark for easy visualization
Diaphragm vacuum pump with less noise
Provision for gaseous sampling
Compact and portable for convenient field operation.
This sampler suitable for measurement of PM10 and PM2.5 simultaneously
PM10 & PM2.5 Impactors of sampler are based on designs standardized by USEPA
